4Pin 12V Relay with 30A Fuse,SPST Normally Open Car Relay with 14 AWG Harness,Universal Automotive Relay Car Accessories for Most Cars Trucks Motorcycles

THE 4 PIN RELAY BRINGS YOU THE ULTIMATE EXPERIENCE!💯 [Product Parameters]Performance Parameters✮ Contact Form: 1A, 1B, 1C, 1U, 2A✮ Contact Type: Normally Open✮ Contact Configuration: SPST✮ Rated Load: 1A: 30A-13.5VDC, 20A-27VDC, 1C: NO/NC 30A-13.5VDC, 20A/15A-27VDC✮ Insulation Resistance: 100MΩ✮ Dielectric Withstand Voltage: 500VAC/M✮ Ambient Temperature: -40°C~+85°C✮ Action Time: 10ms/10ms✮ Mechanical Life: 1x106✮ Electrical Life: 1x105✮ Maximum Switching Voltage: 27VDC✮ Maximum Rated Switching Current: 30ACoil Parameters - Standard✮ Rated Voltage (VDC): 12✮ Operating Voltage (VDC): 8.4✮ Release Voltage (Q±10%): 1.2✮ Coil Resistance (VDC): 90✮ Relay Power Consumption: 1.7💯 [Product Informations]✮ Size:✮ Relay Size: 2.03x1.40x1.38 inch✮ Cable Length: 5 inch✮ Material: Nylon, Copper✮ Color: Black✮ Packaging: 1* 4 Pin Relay with 30A Fuse

• ⚡ Product Specifications: Number of Pins: 4 Pin, Contact Type: Normally Open. Contact Form: 1A, 1B, 1C, 1U, 2A. Contact Configuration: SPST. Rated Load: 1A: 30A-13.5VDC, 20A-27VDC, 1C: NO/NC 30A-13.5VDC 20A/15A-27VDC. Insulation Resistance: 100MΩ. Maximum Switching Voltage: 27VDC. Maximum Rated Switching Current: 30A.

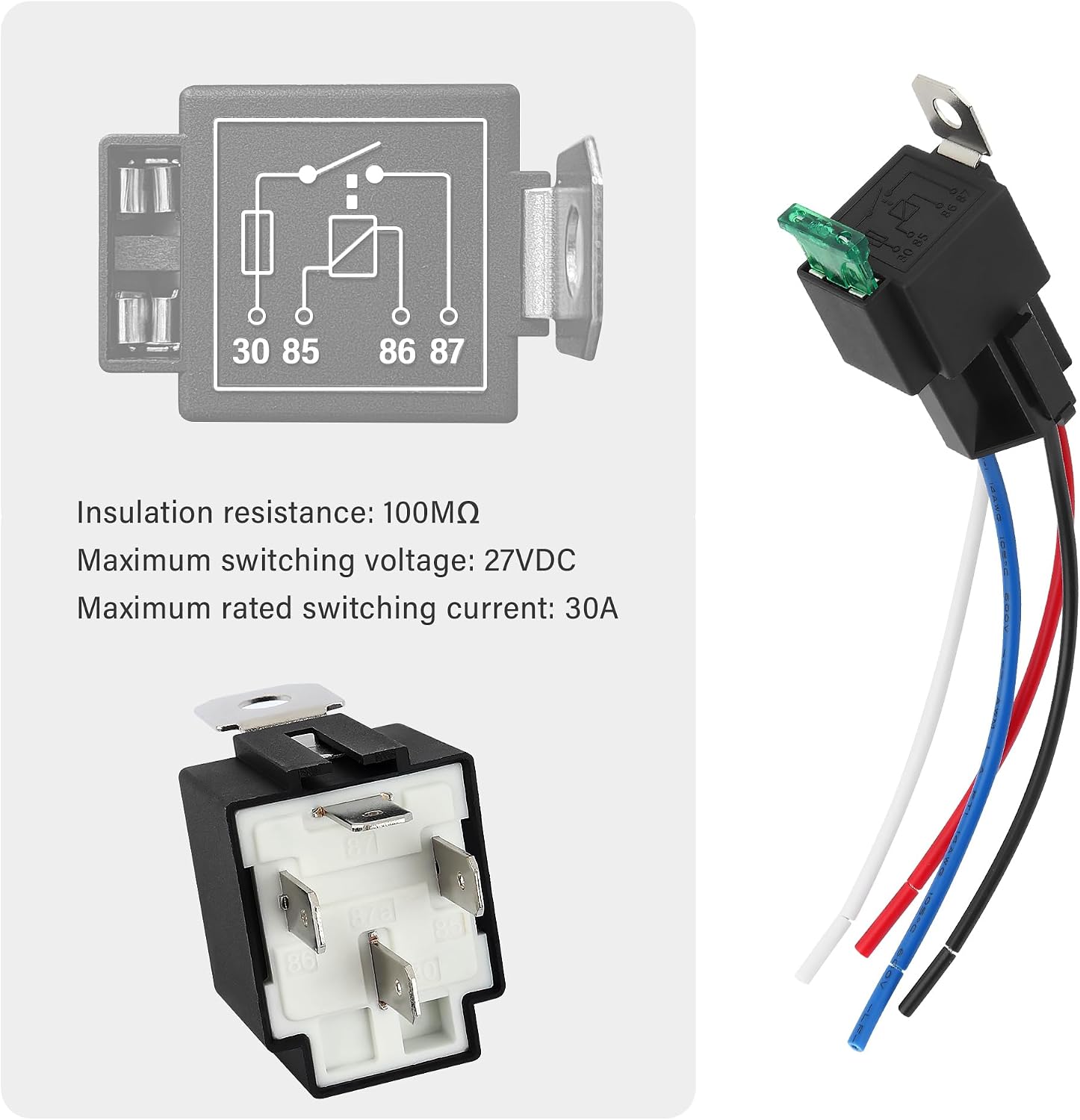

• ⚡ Standard 4 Pin Relay: This car relay operates at 12VDC and uses American Standard 14AWG (red and blue) and 16AWG (black and white) all-copper wires, where the black wire is for ground (85), the red wire is for VDC (30), the white wire is for the trigger (86), and the blue wire is for the output N/O (87).
• ⚡ Reliable Construction: The relay is made of quality pure copper coil and silver alloy contacts, which are more conductive and sensitive, and can provide you with a safer and more stable output current with a long service life. The nylon material shell can work normally under harsh conditions and environment.
• ⚡ Upgraded Configuration: You'll receive a automotive relay that measures 2.03x1.40 inches with a built-in fuse socket so you don't need a separate fuse holder. In addition, it also comes with a 30A blade fuse that is more efficient at avoiding overcurrents, making the circuit safer and more reliable.
• ⚡ Universal 12V Relay: Our relay switch has a wide range of applications and is universal for most 12V models on the market. It can be used for overload protection, security system, power door lock/actuator control, control motors and other electronic equipment applications, very easy to use.
